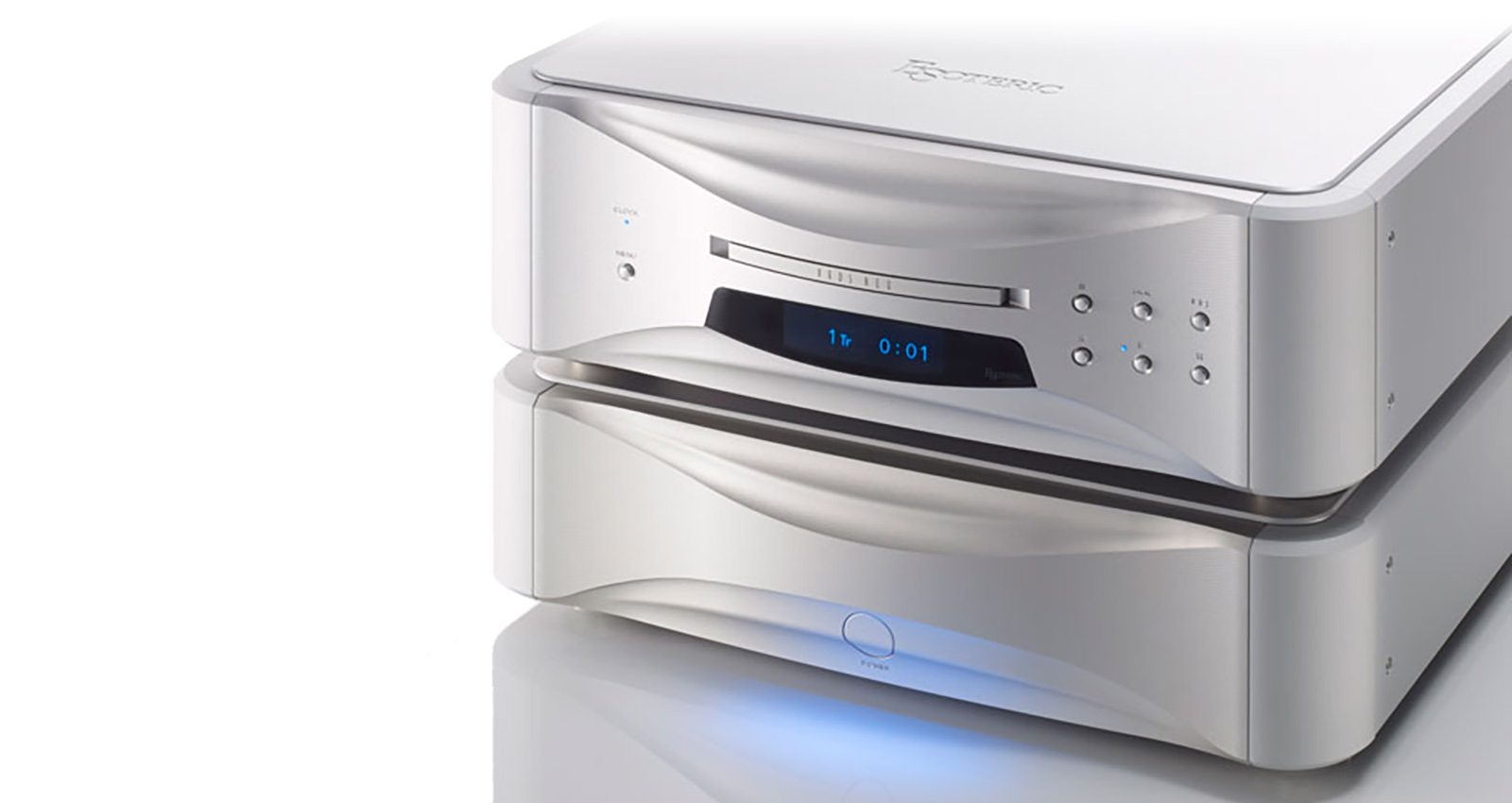

Introducing the next level in state of the art CD/SACD Transports, the ESOTERIC Grandioso P1
To create a moving, once in a lifetime connection between music and the listener, the vitality of the music needs to be conveyed in its purest form, without stress. That is the ultimate mission of top quality audio.
ESOTERIC’s P1 & D1 digital source system combine remarkable new technologies such as ES-LINK4 & 36-bit D/A processing. It’s easy to see why these new Flagship models are called Grandioso, Italian for “Magnificent” & “Majestic”
P1/D1 – ADVANCED TECHNOLOGIES
New ES-LINK4 enables broadband transmission
ESOTERIC has developed an original, state-of-the-art transmission format called ES-LINK4, which allows DSD and 352.8kHz/48bit PCM ultrawideband digital transmission using an HDMI cable. ES-LINK4 performs a large part of the digital signal processing on the sending side, greatly reducing the digital signal processing load on the D/A converter. In addition to ultra-wide bandwidth, we sought high sound quality through our “Pure D/A” concept, in which the D/A converter specializes in its original function of D/A conversion processing.
The outstanding expressive power of 36-bit D/A processing
The D1 applies a 36-bit D/A processing algorithm that converts PCM signals to analog signals at a high resolution of 36 bits by combining several 32-bit DAC devices. The tone of the high-bit data is used for faithful analog conversion. The resolution of 32-bit encoding is 256 times higher than that of 24-bit encoding, and 36-bit encoding gives an amazing resolution level that is another 16 times higher – a total of 4,096 times higher than the resolution of 24-bit encoding. Producing even finer bit tones minimizes operational error for outstanding expression of even subtle music signals.
A new dimension of isolated clock technology
The clock circuit, which supplies highly accurate reference clock signals to a digital circuit, can be considered the core unit of a digital player. The clock circuit of the P1 and D1 is completely independent of other circuits, including its power source and ground, enabling pure clock signals to be supplied to the system. The voltage controlled crystal oscillator (VCXO) was developed especially for the P1 and D1 in a joint effort with Nihon Dempa Kogyo (NDK), a major manufacturer of crystal oscillators. For a high-precision custom clock device worthy of leading models, high sound quality playback is provided thanks to an extremely low level of phase noise and a crystal element that is even larger than before.
High-accuracy clock sync
Jitter is reduced by connecting the P1 and D1 with a BNC cable for clock sync (synchronized playback). ESOTERIC’s original technology for direct master clock linkage without Phase-Locked Loop (PLL)* is also supported. This technology enables pure clock processing, achieving a clear and accurate stereo image and ultra-clear sound quality.
An even more sophisticated level of system operation is possible by connecting the high-precision G-01 rubidium master clock (sold separately). This master clock supports clock sync for a variety of frequencies to suit your sound-quality preferences, including master clocks (22MHz/10MHz) and WORD clocks (44.1kHz/88.2kHz/176.4kHz).
*This master clock is a digital audio output reference clock (22.5792MHz) generated within the high-accuracy clock module of the D1. The system also uses this master clock as the clock of the digital output circuit supplied directly to the P1 without passing through the P1’s internal PLL circuit. It also supports the LINK 10MHz direct master clock using the 10MHz clock supplied from the G-01 (sold separately).

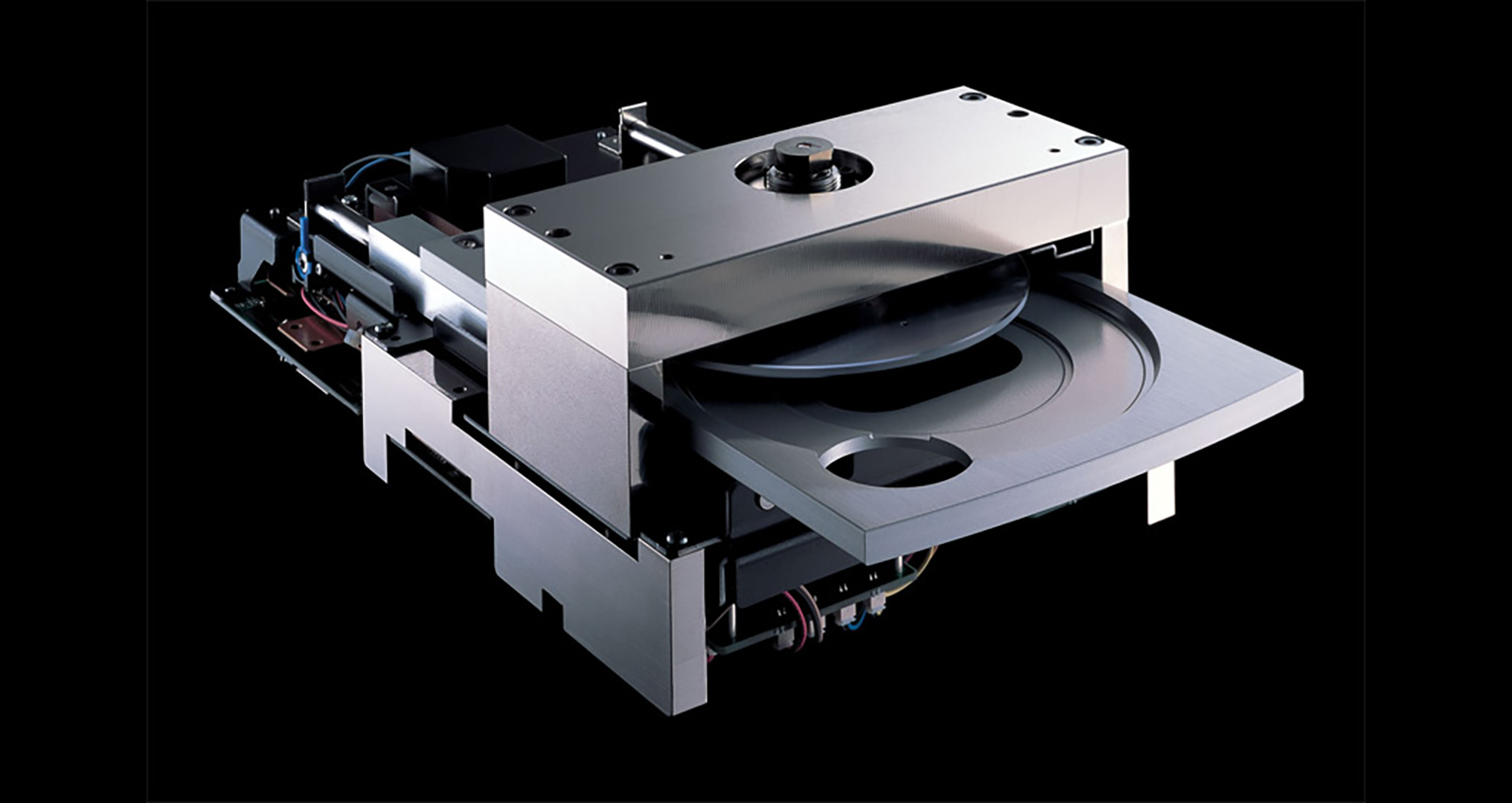

ESOTERIC is justifiably proud of this VRDS-NEO transport mechanism. Remarkable improvements in readout accuracy have been achieved by utilizing a high-precision turntable and correcting the disc surface shake occurring during disc rotation. The P1 features the VMK-3.5-20S VRDS-NEO with a refined drive circuit design. A pair of selected ball bearings is used in the spindle shaft bearing assembly, and there is a micron-level accuracy duralumin turntable with a 20 mm-thick steel turntable bridge for a total mass of 5.2 kg. In addition, the highly trusted mechanism of the P1 has been further refined with a high-magnetic-flux-density magnet-driven coreless three-phase brushless spindle motor, thread feed control (which evolved from the concept of the premier P-0 series), and a sliding-shaft-structure pickup that ensures that the laser beam is always at a right angle to the disc.
VS-DD* spindle servo driver

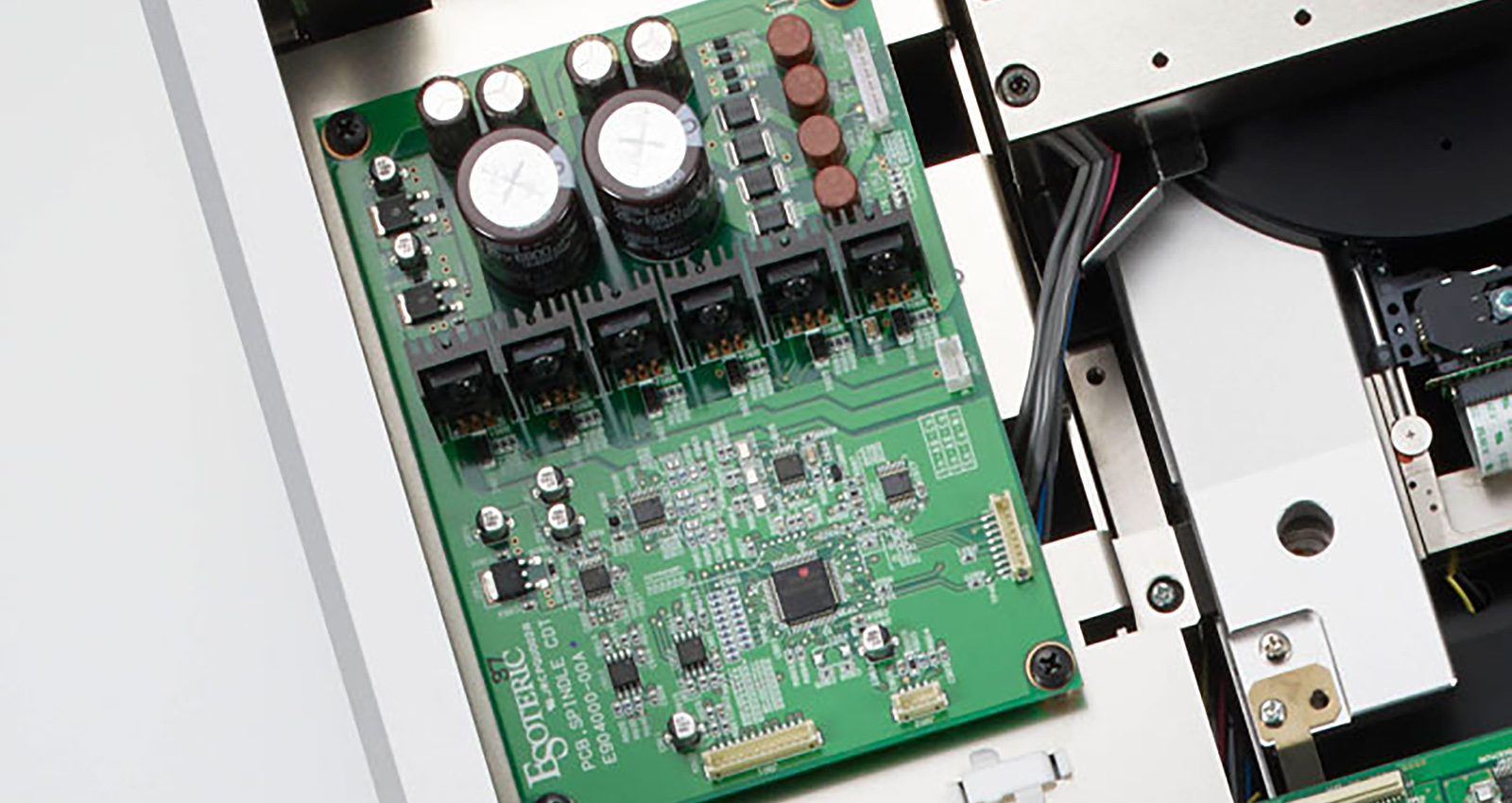

The P1 uses the VS-DD dedicated spindle servo driver to drive the spindle motor that functions as the core unit of the VRDS-NEO mechanism. Using a three-channel discrete amplifier circuit to optimize the current waveform supplied to the motors, the VS-DD suppresses vibrations, enabling smooth spindle drive operation and highly precise servo control. The dedicated toroidal power supply unit is mounted in a separate power supply unit housing, enhancing noise isolation effects.
*VS-DD=VRDS Spindle Discrete Driver
Two-chassis structure for main unit and power supply unit
Following the concept employed in our trademark P-0 series, a two-chassis structure is used in the traditional ESOTERIC flagship model. The power supply unit has been expanded to full-size, making it possible to include even more extravagant power supply circuits. A total of four independent toroidal power transformers are installed to supply clean and stable DC power to each circuit (VS-DD circuit, drive mechanism drive circuit, digital output circuit, and clock circuit).
Extensive material utilized both internally and externally

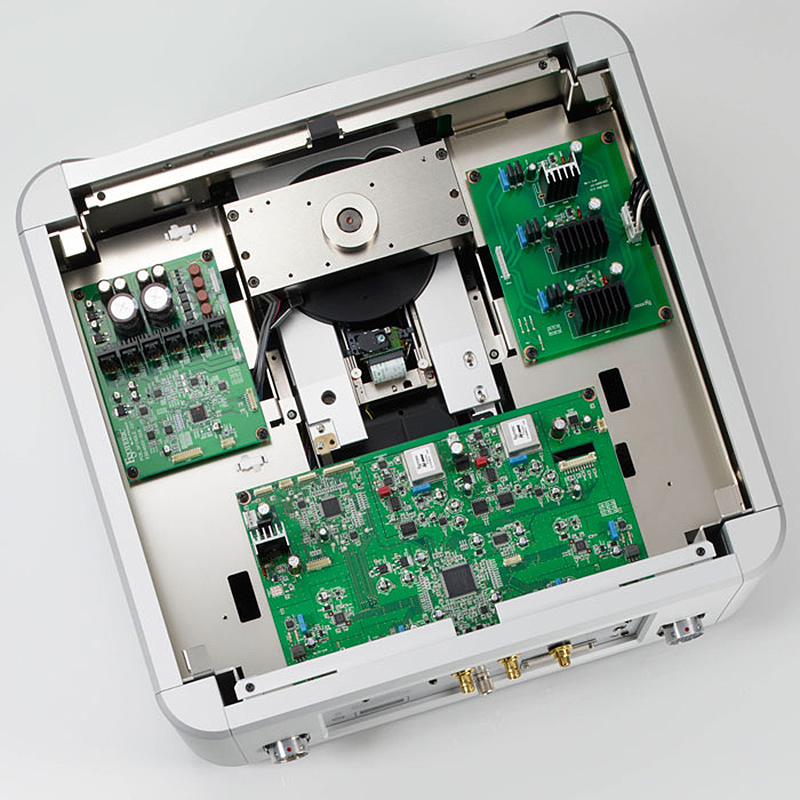

The inside of the main unit chassis has a double-deck structure and 3D optimized chassis construction connecting each circuit block with the shortest signal paths. Thick aluminum materials are used for the exterior, and the 5 mm-thick steel bottom chassis is supported at four points on original ESOTERIC pinpoint feet. Vibration is effectively controlled and thorough measures have been taken for rigidity.
Various digital output terminals

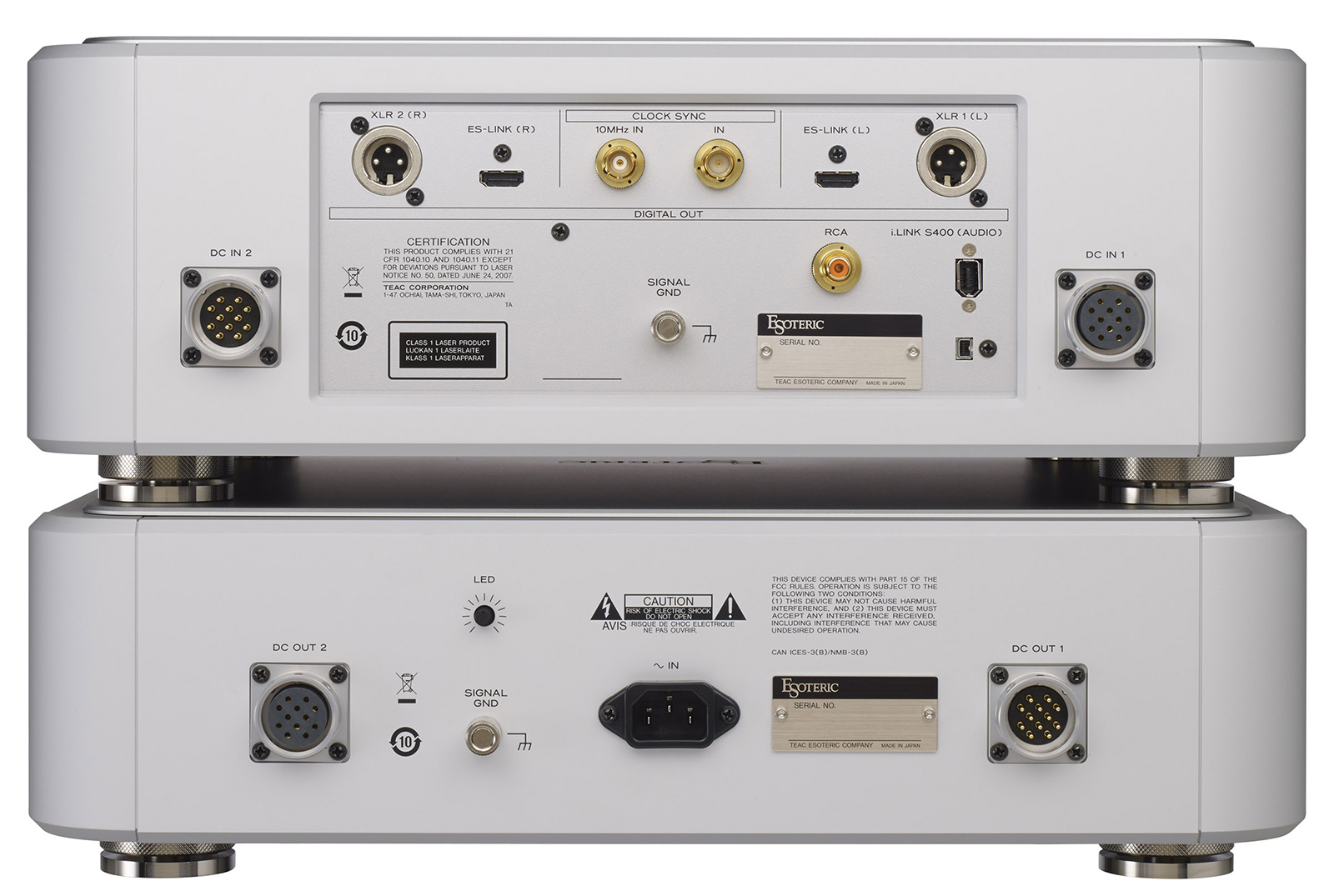

The P1 is equipped with five types and seven channels of digital output terminals (ES-LINK x 2, XLR x 2, coaxial x 1, i.LINK 4p/6p x 1 each), including a new dedicated ES-LINK4 terminal and dual XLR terminals supporting past.versions of ES-LINK.
Luxurious leather-finish remote control
Made of aluminum with just the right heft, the remote control has a leather finish that is supple and comfortable in your hand.
