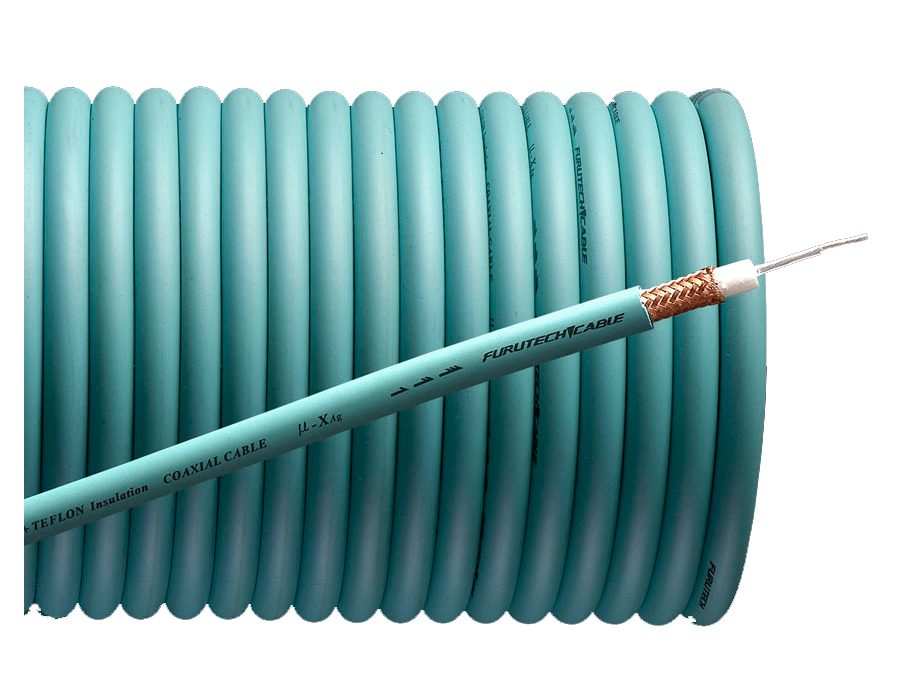

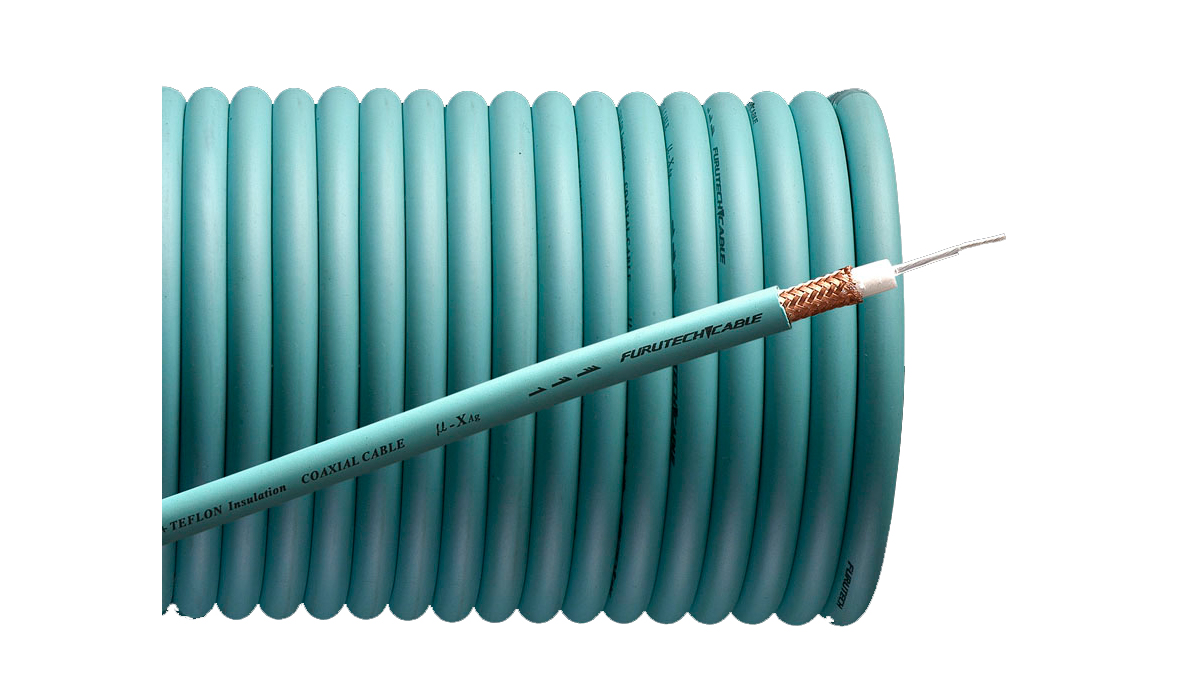

FURUTECH U-X-AG COAXIAL CABLE (RAW)

Description

FURUTECH U-X-AG COAXIAL CABLE (RAW)

This cable is sold per metre. Please select the quantity required from the “quantity” box.

Silver Plated μ-OFC + Fluoropolymer
19 AWG α-Conductor(0.74 sq.mm)

FEATURES

※ α-Conductor ：The fine Silver Plated μ–OFC conductor wire strands and treated by α(Alpha) process.

SPECIFICATIONS

・Conductor:α-Conductor (37pcs×0.16mm)
・Material： Silver Plated μ-OFC
・Insulation : Fluoropolymer + Air Foamed P.E.
・Shield :α-Conductor 0.10mm Braid
・Sheath : Flexible PVC
・Max Conductor Resistance : 0.022 Ω/M
・Overall Diameter :8.0mm (19 AWG)
