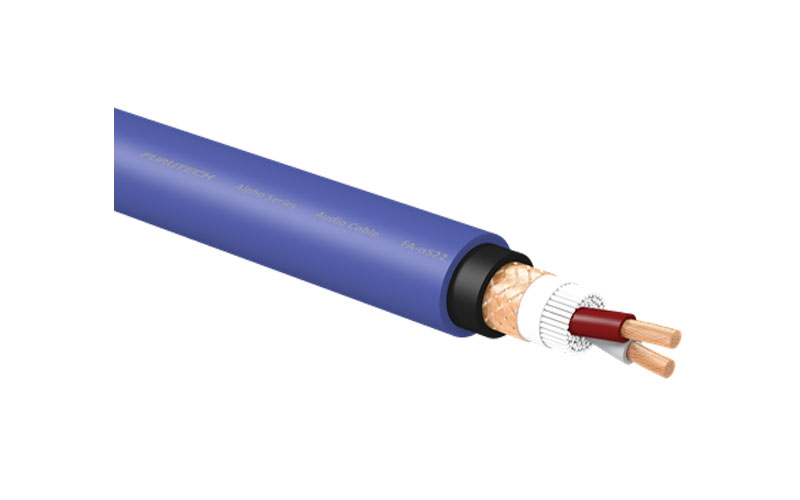

FURUTECH FA-αS22 BALANCED INTERCONNECT CABLE

Product Description

FURUTECH FA- αS22 BALANCED ANALOG INTERCONNECT CABLE

THIS CABLE IS SOLD PER METRE – In the quantity box simply select how many metres you would like to order and click add to cart.

The Furutech FA-αS22 is the successor to the extremely popular FA-220 balanced interconnect cable.

Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC is made with high-purity oxygen-free copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process unique to Furutech.

NOTE: For lengths longer than 5.0m or for full roll pricing (min 50m) please contact us directly.

SPECIFICATIONS

Conductor Material: α(Alpha) OCC
Construction（pcs／mm): 60pcs / ψ0.18 mm
Insulation Material: Audio grade PP (Red, White)
Diameter: 2.6mm
Twisting Method : 2 Cores Twisted Together
Filler Material: Audio grade damping cotton
Barrier Layer Material: Stabilizer Paper Tape (Wrap)
Shield Material: ψ0.12mm α (Alpha) Conductor wire braid
Inner Sheath Material: Audio grade flexible PVC (Black) Incorporating damping carbon particles
Diameter: 7.0mm
Sheath Material: Audio grade Flexible PVC (Purple blue)
Nom. Thickness: 1.0mm
Overall Diameter Approx.: 9.0mm

RATINGS

Max. Conductor Resistance: Ω／km 13.2 (JISC3005 6 20℃)
Min. Insulation Resistance MΩ‧km >100 (JISC3005 9.1 20℃)
CAPACITANCE: PF/M 84.1 at 1KHz
IMPEDANCE: Ω 37.7 at 10 MHz
INDUCTANCE: uH/M 1.55 at 1KHz
Dielectric Strength: V／1 min. AC 1000 (JISC3005 8)
