ESOTERIC 7N-DA3100ES MEXCEL BNC CABLE

Product Description

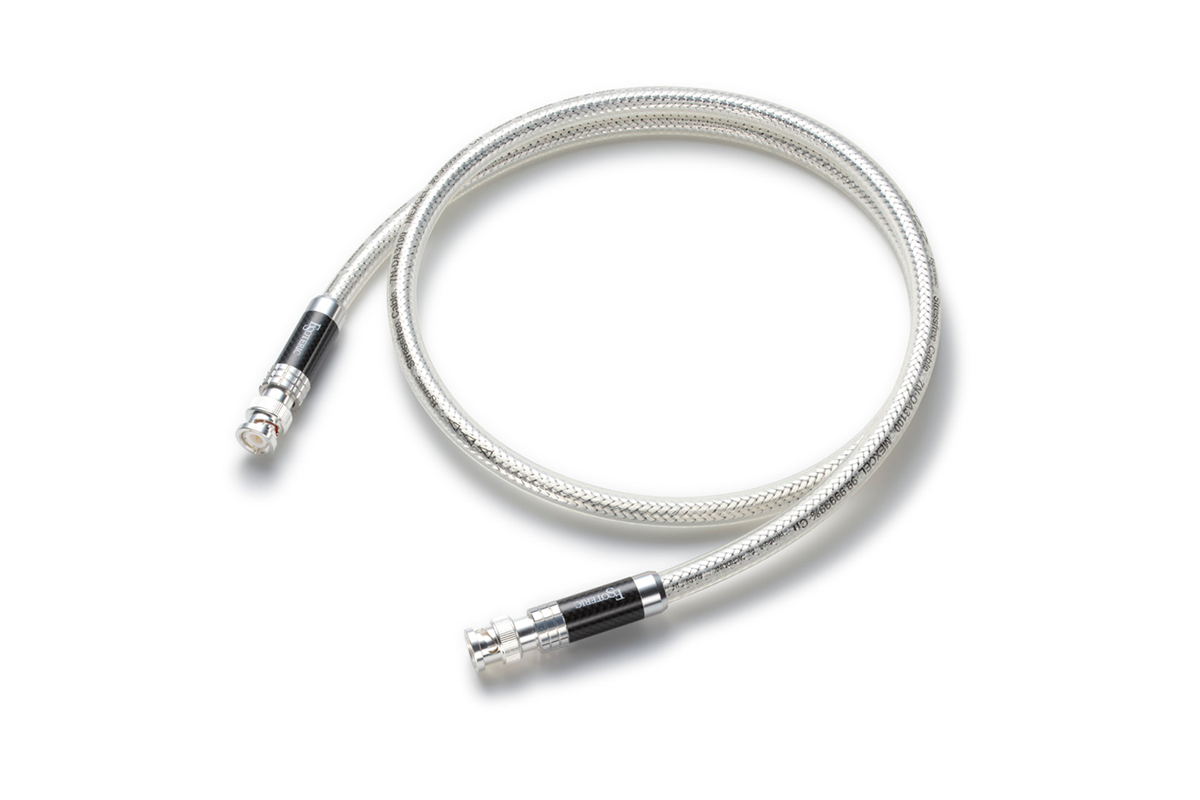

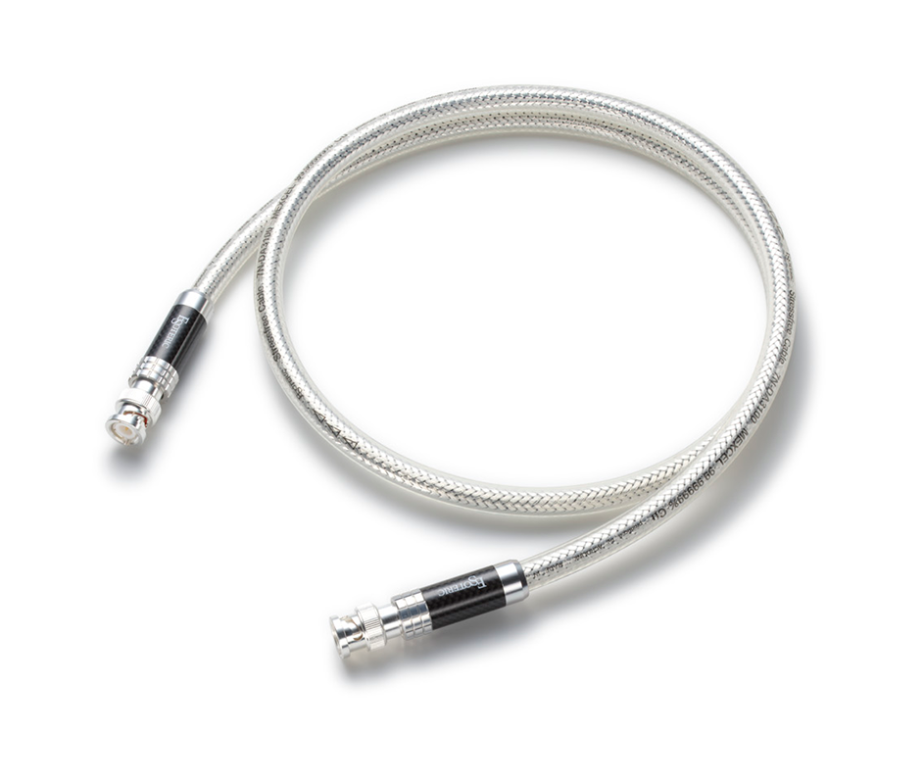

ESOTERIC 7N-DA3100ES MEXCEL BNC CABLE (1.0m)

The Esoteric Mastering Centre stands at the forefront of state-of-the-art music production. Dedicated to refining and remastering classical and jazz masterpieces so they resonate more profoundly with today’s discerning audiophiles. Experience your music like never before with the “Esoteric Mastering Edition” high-quality BNC cable, direct from the expert engineers at the Esoteric Mastering Centre.
Esoteric Mastering team merges cutting-edge Esoteric equipment, finely tuned circuit designs, and meticulously crafted components to deliver pristine, high-fidelity results. Every insight gleaned from our mastering projects feeds directly into the creation of “Esoteric Mastering Edition” cables, ensuring they meet the strictest standards of original master sound.
The “Esoteric Mastering Edition” BNC digital cable “7N-DA3100ES MEXCEL” is a BNC cable specially tuned under the supervision of Chief Mastering Engineer Masaya Tono. Combining the expertise of the mastering centre’s high-quality software and equipment development, this special BNC cable, which embody the passion and pride of the production engineers, gives music listening a greater sense of reality and deepen the bond between the music and the listener.

• High-Quality BNC Cable: Ideal for 10MHz master clock transfer.
• Specially Tuned: Under the Supervision of Chief Mastering Engineer at Esoteric Mastering Centre.
• 50Ω custom BNC connectors: Incorporating know-how from high-quality music software mastering.
• Mexcel Gigahertz Flat Transmission Technology: flat impedance response up to the GHz band.
• D.U.C.C. 7N Cu (purity 99.99999%) Main Conductor
• The 0.8mm Thick Solid Core Mexcel Centre Conductor: Dynamic mid-low frequency
• Thick Silver-Coated Copper Braid Shield: Provides excellent S/N ratio
• Solid Machined Phosphor Bronze + Direct 24K Gold Plated Centre Pin: Ideal for classical music with its smooth sound quality.
• High-Quality Silver + Rhodium Plated Phosphor Bronze Cold-Signal Shell
• Carbon Fibre + Aluminium Plug Sleeve: Provides vibration-damping and noise-absorption effect

PHILOSOPHY OF ESOTERIC MEXCEL CABLE

“To new frontiers in cables that have never been reached before”. – Esoteric Mexcel’s philosophy has never changed since its inception.
At ESOTERIC, our dedication to music goes hand in hand with our unwavering commitment to hardware innovation. Our passion for music and proven track record in hardware development, combined with the insights of our music production team has consistently driven the evolution of cables, passing the baton from one generation to the next. Since their launch in 2004, Mexcel cables have continuously supported high-quality audio playback and music production with their outstanding musical expression. Esoteric’s Super Audio CD/LP reissue series featuring over 300 albums relies on Mexcel cables for all mastering.
The Mexcel cables, developed from specialized knowledge gained in high-performance aerospace and defence cable design, achieve wideband transmission that exceeds the gigahertz (GHz) range. The wealth of information enabled by gigahertz transmission, together with the high purity of 7N Cu (99.99999%), Beloved by recording professionals, musicians, and audiophiles alike, Mexcel continues to prove its exceptional musicality and open the door to a bold new frontier in hi-fi audio cables.

MEXCEL PREMIUM STANDARD LINE

The Mexcel Premium Standard Line (7N-DA3300/DA3100 series) is the core model of the Mexcel cable series, uncompromisingly following the essence of the flagship Mexcel Reference Line. The “Gigahertz Flat Transmission” technology, which enables flat transmission up to the GHz band, is also incorporated into this series.

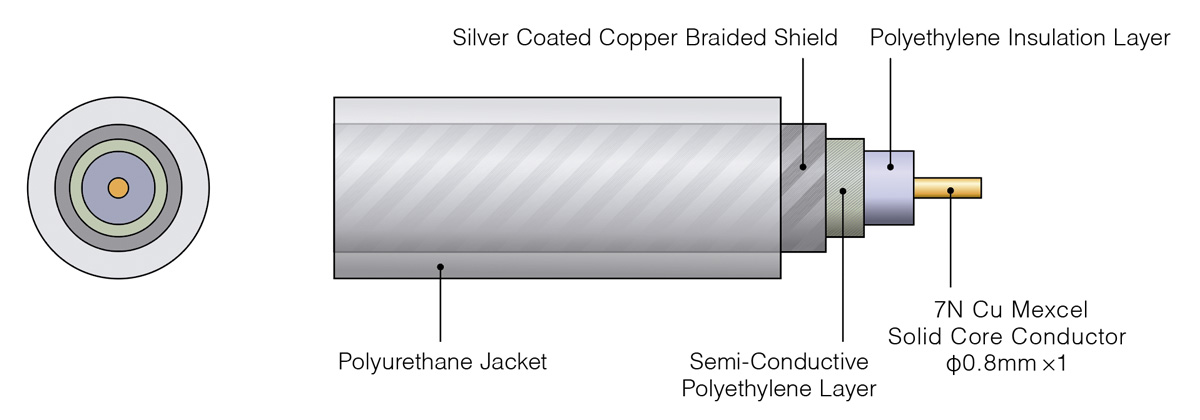

The excellent frequency response enhances spaciousness, dynamics, and texture in the sound, all of which remain exceptionally pure. The high level of musical expressiveness, a hallmark of the Mexcel series, creates an openness so profound that you hardly notice the cables in your audio system. The 7N-DA3300 is a 2-core + shielded XLR balanced cable, while the 7N-DA3100 is a coaxial cable (RCA, BNC). Both models feature a φ0.8mm solid-core (single-core) Mexcel centre conductor, ensuring powerful, unwavering sound quality. Additionally, thick silver-coated copper braided shielding is employed to enhance the signal-to-noise ratio.

MEXCEL CABLE TECHNOLOGY – “GIGAHERTZ FLAT” TRANSMISSION

The main feature of Mexcel cables is their uniform impedance, which remains stable even up to the GHz band, allowing for the transmission of signals with consistent impedance.
Mexcel utilizes conductor material technology based on the Medis electrodeposition insulation method, a manufacturing process similar to electroplating for insulating resin. This innovative technique ensures uniform insulation regardless of shape – including flat wires, which are traditionally difficult to insulate around the corners.
By insulating the surface of the wire, the conductor area is maximized, effectively preventing the attenuation of high-frequency characteristics caused by the skin effect. As a result, we have achieved wide-range “Gigahertz Flat” transmission characteristics.

99.99999% PURITY MEXCEL CABLES ARE HIGHLY RESISTANT TO PHYSICAL STRESS & MAINTAIN HIGH TRANSMISSION CHARACTERISTICS AT ALL TIMES.

D.U.C.C.* 7N Cu is used as the main conductor. With a purity of 99.99999%, it is produced using a raw material manufacturing process equivalent to that used for semiconductors, which demands the highest level of quality assurance. The total metallic impurity content is strictly controlled and guaranteed to be 0.1 ppm or less. Additionally, even against the degradation of crystal structure caused by bending during use, stress-free processing, developed by AcroLink, ensures that the conductor remains in an optimal state. This is achieved through self-annealing at room temperature, preserving excellent transmission characteristics over time.
* D.U.C.C.
The larger the crystal grains in a conductor, the better the sound quality. D.U.C.C. (Dia Ultra Crystallized Copper) is a high-purity copper conductor for audio applications that has crystal grains that are tens of times larger than those of ordinary pure copper, and the orientation of the crystals has also been optimized.

MASTERING GRADE BNC CONNECTORS

The 50Ω BNC connector, ideal for transmitting 10MHz clocks, was developed under the supervision of Masaya Tono, Chief Mastering Engineer at Esoteric Mastering Centre. Every material used in each component was carefully selected through meticulous listening tests, with extensive auditions conducted by changing material combinations and plating to achieve the highest sound quality.
The hot signal centre pin is crafted from solid phosphor bronze, a rare and expensive material known for its exceptional sound quality. For plating, 24K gold plating was chosen, as it delivers a warm and mellow sound, ideal for mastering classical music. To prevent sound quality variations due to magnetism, the gold plating is applied directly to the phosphor bronze centre pin, without any nickel undercoating.

The cold signal shell is constructed from high-quality phosphor bronze and finished with “silver + rhodium” plating, ensuring superior signal integrity.

The connector housing of the 7N-DA3100ES is made of carbon fabric and an aluminium sleeve, providing both vibration-damping and noise-reducing properties to maintain pristine audio performance.
