Product Description
GRAND PRIX AUDIO APEX STANDARD FOOTERS & LEVELERS
The standard size Apex is the model that started it all.

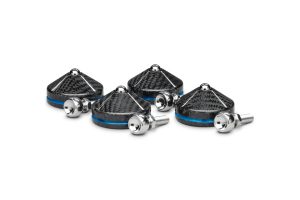

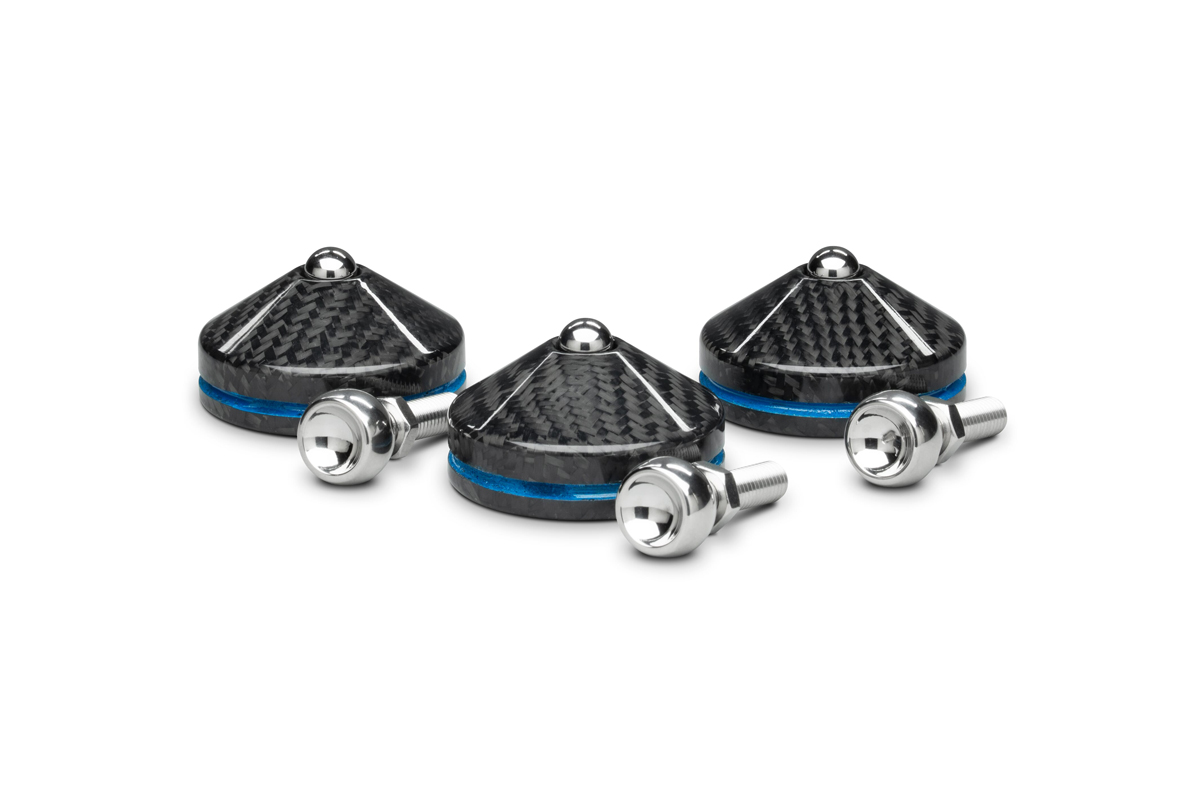

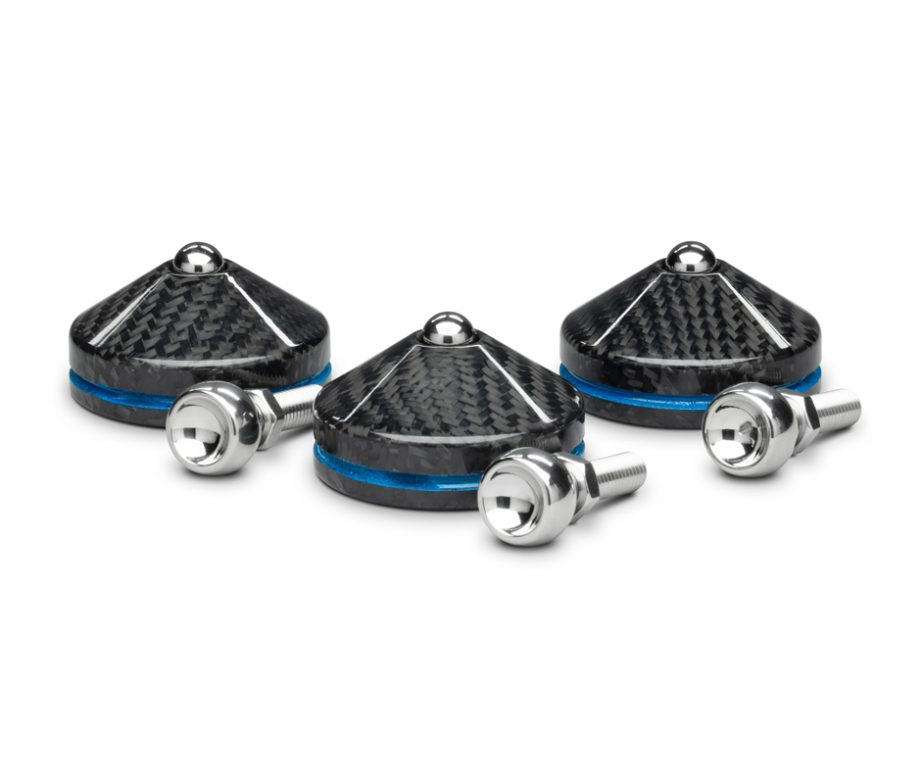

This listing includes the following
- Apex Standard footers (3 or 4)
- Apex hardened steel bearings (3 or 4)
- Apex Levelers (3 or 4)
Please select the Leveler thread required from the drop down menu above. If you do not know the thread of your rack please contact us for further help.
Apex footers might look like classic ‘isolation’ cones, but they are far more sophisticated and effective than that.
They combine a hardened steel (or silicon-nitride ceramic option for Apex Standard or Apex XL) ball interface with a dual-purpose isolation/dissipation support. The external, structural elements are pressure formed from carbon composites, the void within the cone filled with a specially developed, proprietary polymer that decouples the upper element from the base. Originally developed for aerospace applications, this polymer exhibits extraordinary energy dissipation properties. The precision moulded cup offers a perfect contact surface for the ball, ensuring optimum energy transfer into the carbon cone and then, via the cone’s large internal surface area, into the polymer. The end result is remarkable management of spurious energy, whether that energy originates within the supported component, or is transmitted by the structure that supports it.
SPECIFICATIONS:
- Diameter: 63mm (2.5 in.)
- Height: 37mm (1.45 in.)
- Weight: 130 grams
- Load capacity: 450Kg+ (1,000lbs+) each
