Product Description

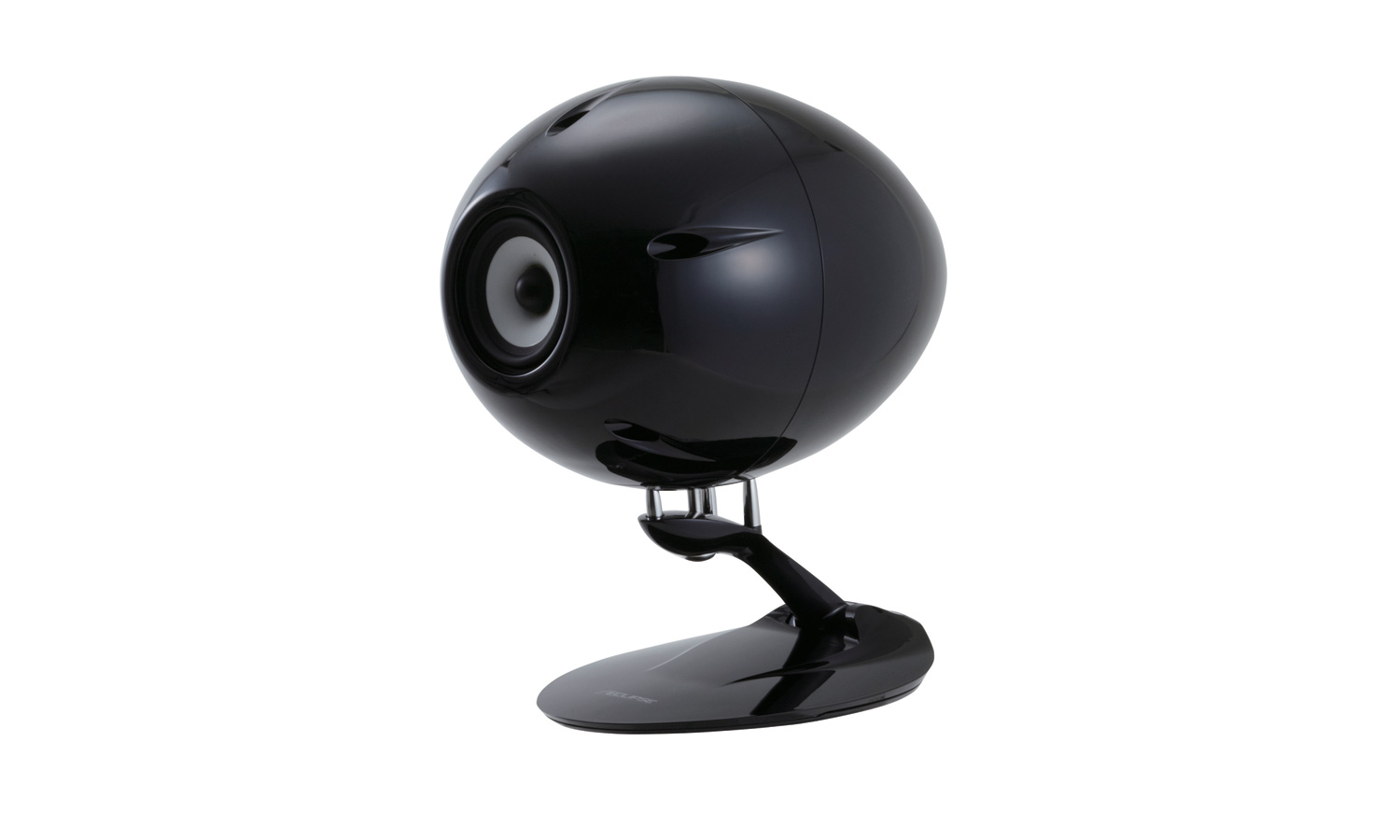

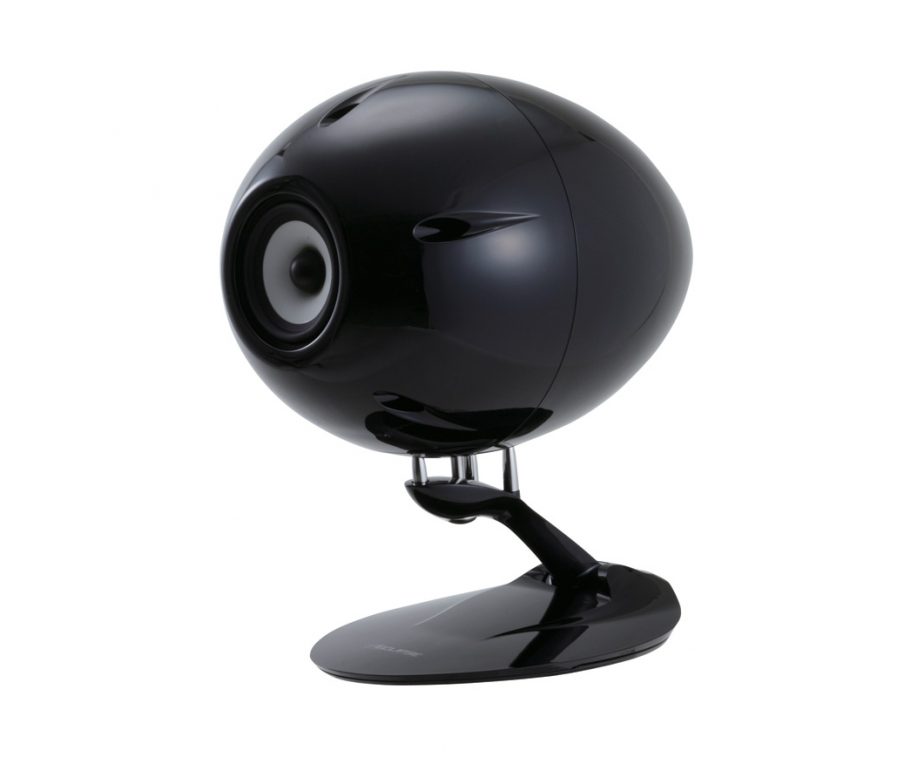

ECLIPSE TD510MK2 LOUDSPEAKERS
The mark two TD510 has been launched in our 10th anniversary year to exemplify 10 years of continuous technical improvements. It takes accurate sound reproduction to a whole new level, along with a new flexible adjustment, allowing to you to enjoy maximum sound fidelity mounted from the ceiling or your ideal setting for perfect sound.
Available in black, silver and white. Can be used as monitors, mounted on stands, on-wall and off the ceiling.
Price is per pair. Can also be ordered in single units, please contact us should you want an odd number of speakers.

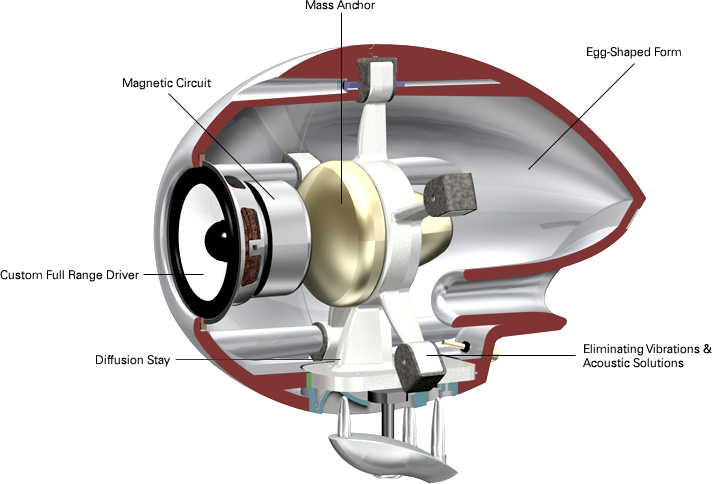

Our unique Time Domain theory technologies achieve the most accurate sound reproduction
10cm Full Range Driver
Because the cone needs to be extremely light, offering greater elasticity whilst still possessing high radial rigidity, fibreglass has been chosen as the ideal material for the drive-unit. It is then connected to the enclosure by a highly flexible, rubber surround incorporating a re-designed damping system. This allows precise, lateral piston movement. The magnetic flux density is approximately 4.5% greater than in the TD510, providing more powerful motor system.
Mass Anchor
A high mass, conical anchor weight has been placed on the back of the drive-unit magnet. This structure acts as a mass sink, which ‘grounds’ the drive-unit ensuring the ideal piston movement.
Eliminating Vibrations & Acoustic Solutions
In order for its floating enclosure to be effective we have achieved an air-tight seal, whereby the drive-unit is sealed to the enclosure, eliminating the transmission of unwanted vibrations. This requires a permanent bond combined with a flexible coupling.
Magnetic Circuit
To make the most of the custom driver, it must be driven correctly by the magnet, which effectively the engine of the speaker. The ECLIPSE TD speakers incorporate a specially designed circuit to ensure a high magnetic flux density, creating a powerful magnet with an optimized voice-coil.
Diffusion Stay
Colouration of sound reproduction will occur if the speaker cone is allowed to cause the speaker enclosure to vibrate. ECLIPSE TD speakers minimize this issue with a sophisticated ‘diffusion stay’ whereby the drive-unit is held in a floating mechanism so that no residual vibration can be transferred from the unit itself to the enclosure.
Egg-Shaped Form
In the ECLIPSE TD series, the internal standing and diffraction waves generated at the front baffle edges are largely eliminated by adopting a rigid, yet tactile egg-shaped form, in which no two radial surfaces are in the same plane. With TD510MK2, the wider frequency response has been dramatically improved by increasing the internal volume of the cabinet by approximately 14% from TD510, which also helps to reduce the back pressure on the driver for better impulse response.
Solid Foundation
TD510MK2 pedestal stand is an ‘all-point’ contact design, achieved by using three steel legs mounted in the top of the stand arm in combination with a specially machined, locking ring. This design eliminates undesirable vibrations, ensures tighter lower frequency performance and allows for angle adjustments, which is an unusual option for high-end speakers. Adjustment of -10 to 30 degrees of the head angle offers a wide range of flexibility in the installation to suit the individual listening environment.
Mounting Options – Ceiling
TD510MK2 can be ceiling mounted by adding the dedicated CB1 bracket (sold separately). By changing the speaker arm setting, it will allow step-less adjustment of the speaker angle in the range of -75 to 10 degrees. The stand arm of TD510MK2 will accept speaker cables of less than 7m diameter for smart installation.
