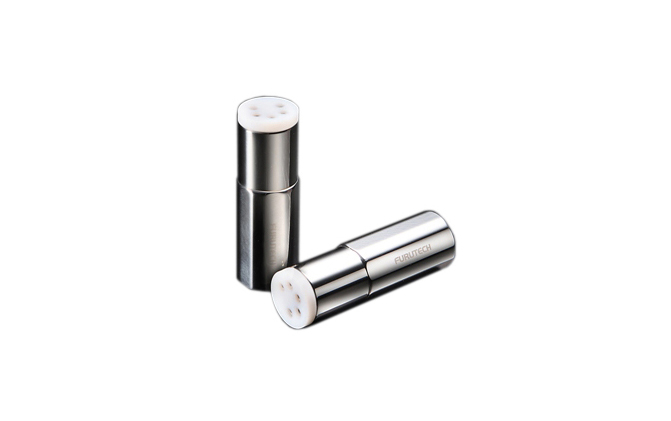

FURUTECH 5-PIN DIN CONNECTOR

Product Description

FURUTECH 5-PIN DIN CONNECTOR (SELECT MODEL YOU REQUIRE)

PRICES ARE FOR ONE (1) PLUG ONLY!

Specially engineered FP-Din (L) construction allows adjustable pin orientation!

Furutech Pure Transmission Philosophy

Meticulous build quality is a large part of the engineering equation. Furutech Pure Transmission technology turns a macro lens on every element of power and signal transfer applying optimized engineering solutions to well-known problems such as contact resistance, EMI and RFI rejection, grounding, and using the best materials and processes

FEATURES

•Rhodium-plated α (Alpha) phosphor bronze conductor
•Fluoropolymer Insulated Body
•Nonmagnetic stainless steel housing
•Soldered connections

SPECIFICATIONS

•Specified for cable diameters max. 10.0mm
•Dimensions: FP-DIN 14.0mm diameter x 54.0mm overall length
•Dimensions: FP-DIN(L) • 45(L) X 19(W) X 33.4(H) mm approx.

CARBON FIBRE (CF) VERSION

・Rhodium-plated α (Alpha) phosphor bronze conductor
・Fluoropolymer Insulated Body
・Nonmagnetic stainless steel and carbon fiber finished housing
・Termination method: Solder

SPECIFICATIONS

・Specified for cable diameters max. 11.0mm
・Dimensions: 14.2mm diameter x 40.2mm overall length
